seat control module

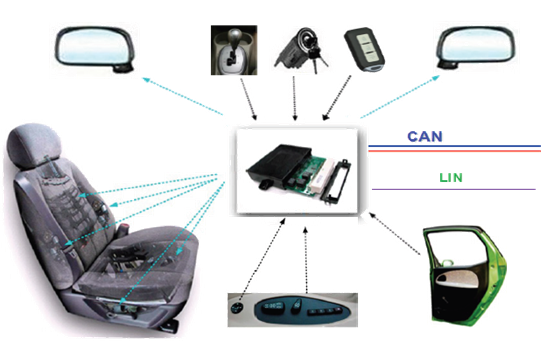

with the rapid development of automobile industry and electronics technology, seat control module emphasizes more on the comfortability, safety, and seat control system. these indexes gradually become an important consideration for customers valuing automobile's comfortableness. seat control module can control numerous motors for adjusting location, angle, and height of seat to enable drivers set their ideal driving position. the seat-memory control module stores the individual seat position which has been selected and drivers can therefore return the seat to their pre-selected position via button pushing. in association with the appropriate central locking systems and user-specific keys, the seat will also adjust automatically when the vehicle door is opened. driver seat position can be adjusted according to the crash risk. the position also can be sent to rear airbag control unit for better control strategy. as a seat-control-module solution provider, hirain will produce auxiliary products based on customer needs.
.gif)
main functions

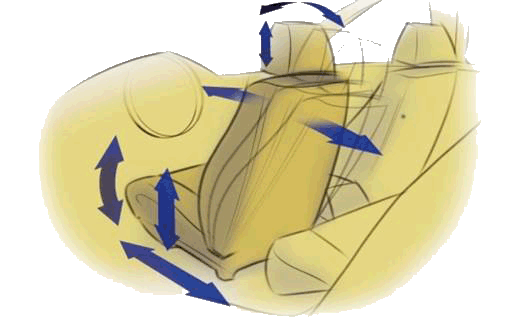

● seat adjust function (height, length, backrest, cushion tilt, etc)
● exterior rear view mirror adjust
● seat and mirror positions memory or recall
● seat heating, ventilation, massage
● load fault diagnosis
● iso 15765 diagnostic protocol
special features
● entry aid for driver and rear-seat passengers
● activating memory by remote control key
● mirror auto decline
● slow adjust
● soft stop
● seat physical position/location signal provided
technical features
● operating voltage range: 9v~16v
● quiescent current: 0.1ma @12v
● operating temperature range:：-40℃～85 ℃
● overrun & stall protection
● adjustment accuracy: 0.04mm，0.03°
.jpg)
