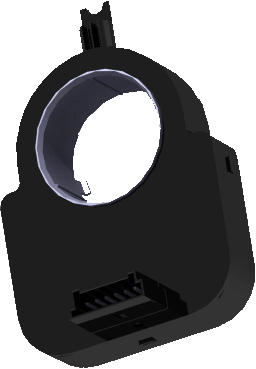

steering angle sensor
the steering angle sensor (sas) is used to measure the angle of rotation of the steering wheel when the car is turning.this is a non-contact multi-rotation angle sensor and can detect the absolute steering wheel angle. the sensor development process complies with the functional safety specification standard iso26262.
application
.gif)
• adaptive front-lighting system(afs)
• electrical stability program (esp)
• electrical power system (eps)
• advanced driver assistance systems (adas)

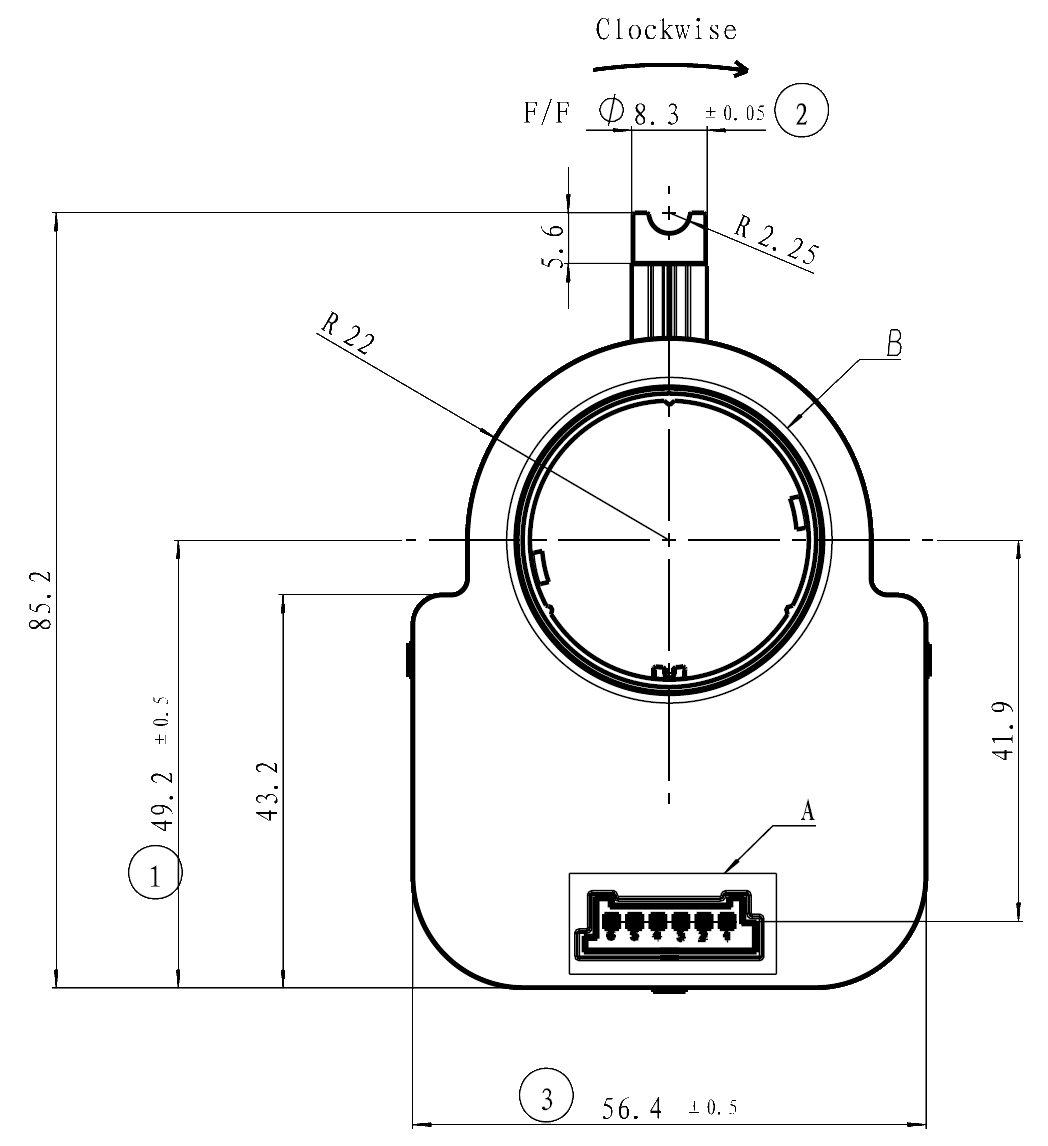

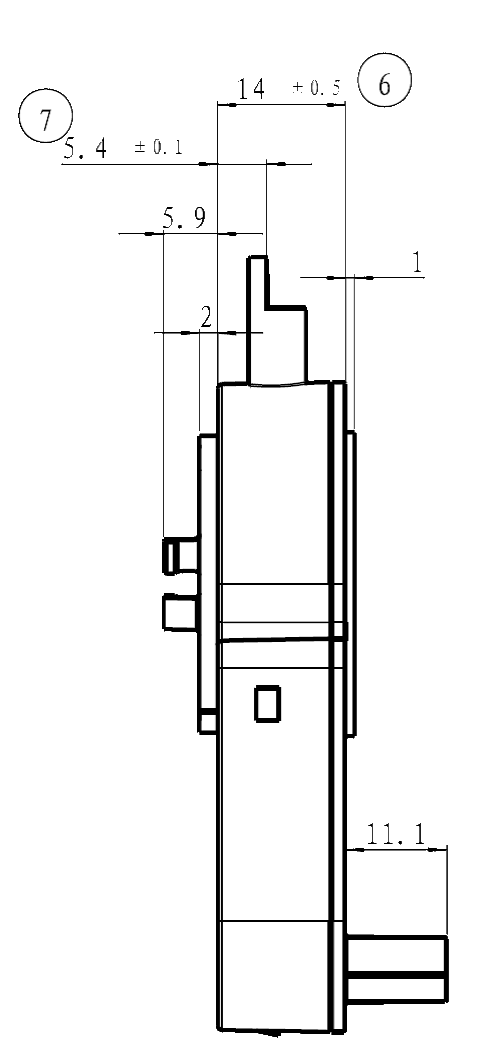

sensor dimension
product parameters
• absolute maximum ratings
|
storage temperature range |
-40℃ ～ 90℃ |
|
operating temperature range |
-40℃ ～ 90℃ |
|
seal class |
ip52 |
• electrical characteristics
|
supply voltage |
12v / 24v |
|
supply voltage range |
8v~18v or 18v ~ 32v |
|
working current |
<100ma |
|
zero calibration |
via can |
|
software update |
via can |
• output characteristics
|
angle measuring range |
-1575°~ 1575° |
|
angular velocity measuring range |
0°~ 1016°/s |
|
angle measuring resolution |
0.1° |
|
angular velocity measuring resolution |
4°/s |
|
precision |
<= ±2.5° |
|
communication interface |
can |
|
communication rate |
250k or 500k |
|
message update rate |
10ms |
|
matching connector |
amp 1-1241370-3 |
message protocol
note: y=kx; y: actual rotation angle; x: can msg value; y=0.1*x（0

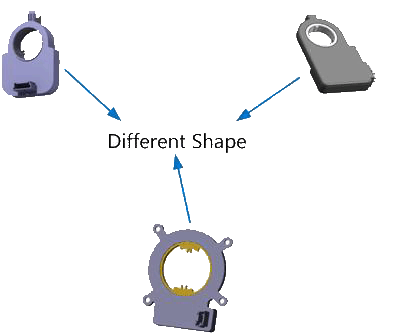

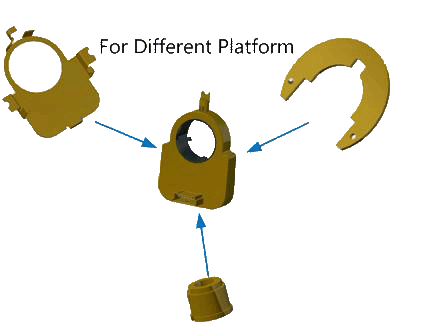

platform design

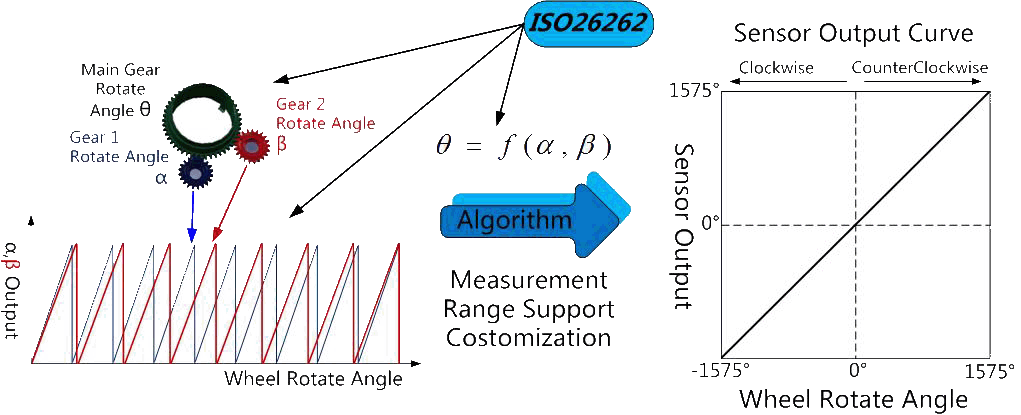

measurement theory
customers
kingdragon—esp system faw—afs system dongfeng—esp system
