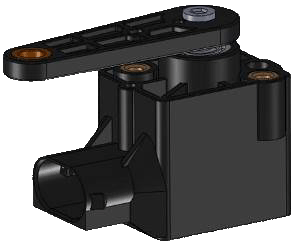

brake pedal angle sensor
the brake pedal angle sensor implements the hall sensor to detect the angle of the brake pedal position with high precision. the electronic accelerator pedal/brake pedal position can be measured with a specific mounting bracket and linkage mechanism.
.gif)
features
• non-contact measurement
• measurement range can be customized according to customer needs
• proportional analog voltage, pwm output mode
• support dual redundant output mode

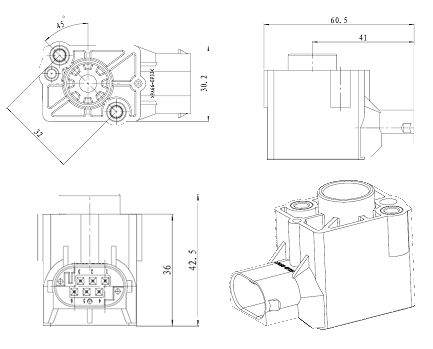

sensor dimension
.gif)

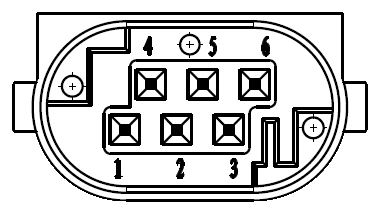

icd definition
.gif)
|
pin no. |
definition |
|
1 |
gnd |
|
2 |
n/a |
|
3 |
n/a |
|
4 |
output |
|
5 |
5v |
|
6 |
n/a |
performance index
• absolute maximum ratings
|
storage temperature range |
-40℃ ～ 105℃ |
|
operating temperature range |
-40℃ ～ 105℃ |
|
relative humidity |
< 95% (25℃) |
|
seal class |
ip6k9k |
• output characteristics (within the operating temperature range)
|
supply voltage |
5v±10% |
|
current draw |
15ma (single); < 30ma (dual) |
|
sensor output |
analog or pwm |
|
resolution |
0.1° |
|
accuracy |
<= ±2° |
|
update rate |
< 4ms |
|
zero error |
< ±1° |
|
matching connector |
amp 1-967616-1 |
|
assembly features (see mechanical drawings for details) |
fixed at two points with m5 screw |
|
rocker length |
50mm |
|
range of measurement |
<= 120° |

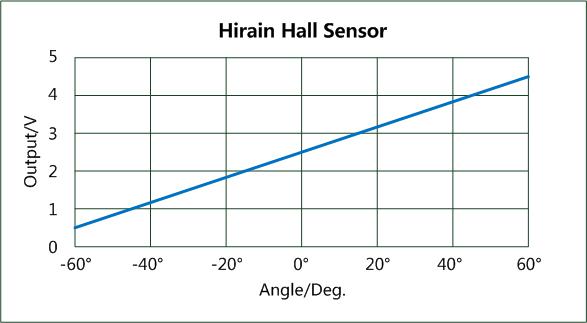

• output curve （analog）
.jpg)
installation

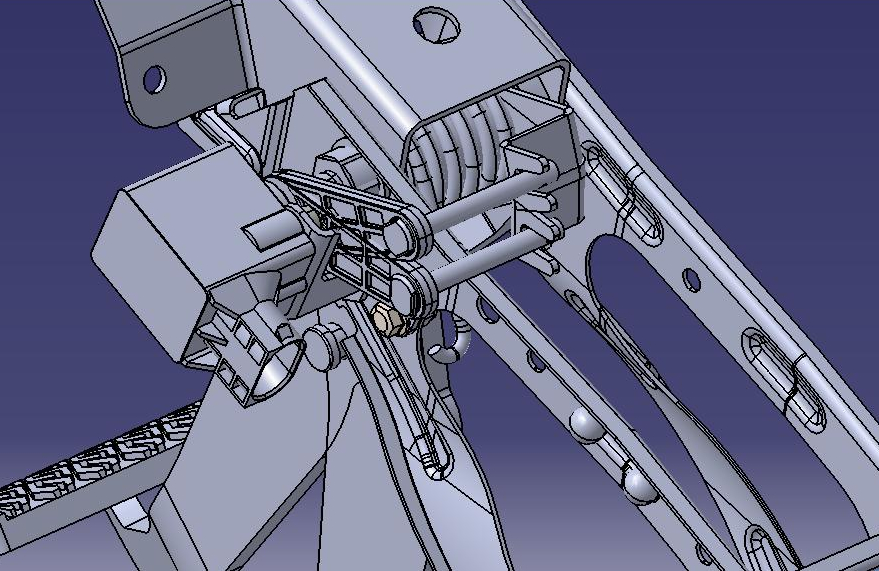

when measuring the position (angle) of the accelerator pedal and the brake pedal, the installation form is as shown below:
.jpg)
