hiquanten.flash
hiquanten.flash is an ecu program and data download software. it transfers ecu programs and data to the ecu with bootloader function through bus communication interface in order to upgrade ecu. the advantages of hiquanten.flash include friendly user interface, convenient operation process and flexible settings adjustment.
.gif)

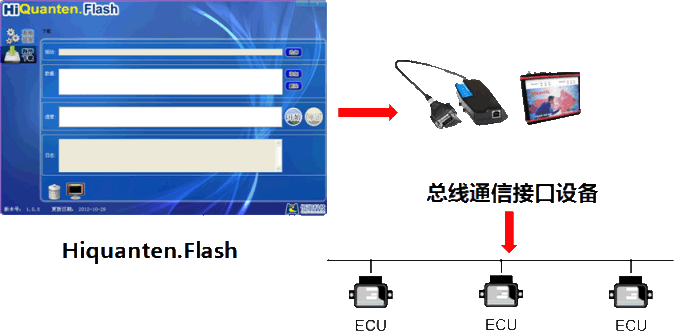

hiquanten.flash downloading sketch
functions
• flexible data downloading function: besides supporting downloading programs into ecu flash, hiquanten.flash can also download the program data into ecu eeprom separately.
• powerful data identification function: hiquanten.flash can resolve multiple program and data formats including s19, hex, bin and mot.
• convenient configuration adjust function: for different ecu, the communication parameters, for instance, can baud rate, can be easily set. user can also customize the safety algorithm (data validation, access security algorithm, etc.). the configurations can be saved and loaded smoothly at any moment.
• shortcut stay-in-boot function: one-click stay-in-boot is provided to send a series of commands to switch the ecu to bootloader mode for program initialization, in case of malfunction caused by an incorrectly downloaded program.
• customized continuous downloading function: customized detection tactics are provided. if multiple ecus are detected in the network, hiquanten.flash is able to burn in all the ecus continuously. user can arrange different programs and data for each ecu.
• software training
• one year complimentary technical support
• one year complimentary upgrade service
composition
